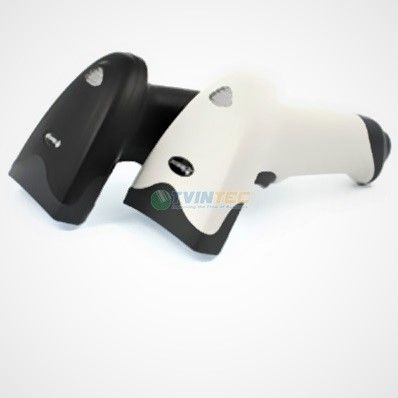

Máy Quét Mã Vạch Newland NLS-HR100

Liên hệ: +84 907 669 388

Tình trạng: Có sẳn

Màu sắc

Đặc tính kỹ thuật máy quét đọc mã vạch Newland NLS-HR100

Performance
Image Sensor
Linear CCD
Interface
USB-HID, True RS232,
TTL level RS232, Keyboard Wedge
Symbologies
Code128, EAN-13, EAN-8,Code39,UPC-A,UPC-E, Codabar, GS1 Databar, Interleaved 2 of 5, ISBN, Code 93 etc.
Precision
 5mil(Condition:PCS=0.9, testing code: Code 39)
Light Source
Visible LED Diode 620 nm
Scanning Speed
300 scans per second
Depth of Scan Field
25mm-390mm
Print Contrast Signal
 30%
Sensitivity**
Pitch
±55°@ 0°Roll and 0° Skew
Roll
±25°@ 0°Pitch and 0° Skew
Skew
±75°@ 0°Roll and 0° Pitch
Illumination
0 ~ 80,000 LUX
Mechanical/ Electrical
Power Consumption
0.75W (Max)
Voltage
DC 5.0V
Current
Peak
150mA
Working
120mA
Idle
45mA
Colours
Black OR White
Weight
105g
Environment
Operate Temperature
-0 to + 50℃
Storage Temperature
-40 to + 60℃
Humidity
0 to 95% relative humidity( non-condensing )
Drop
1.5 m drops to concrete
Certifications
FCC Part15 Class B, CE EMC Class B
Accessories
Bracket
The bracket for HR100, the HR100 could be mounted in the bracket.
Flex Cable
RS232 Cable
This cable connect to the RS232 port of HR100 with a RJ45 port.
With a standard female RS232 port to connect to standard male RS232 port.
With a power port to accept power adapter supply.
USB Cable
This cable connect to the USB Slave port of HR100 with a RJ45 port.
With a standard USB Slave port to connect to standard USB Host port.
PS/2 Cable
This cable connect to the KBW port of HR100 with a RJ45 port. With a PS/2 Host port.
Power Adapter
The power adapter for HR100 by the RS232 Cable.
Output: DC 5V, 2A; Input: AC100~240V, 50~60HZ.
