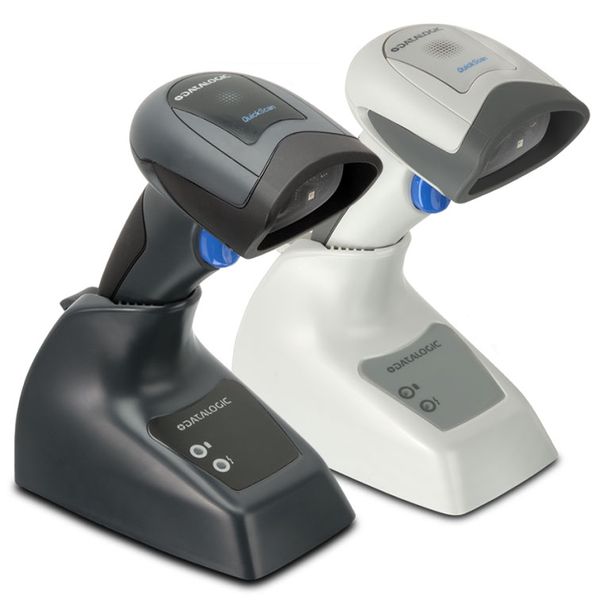

Máy đọc mã vạch Datalogic QuickScan I QM2131 1D

Liên hệ: +84 907 669 388

Tình trạng: Có sẳn

Máy đọc mã vạch 1D không dây cầm tay với nhiều tính năng ưu việt nhất, có thể di chuyển để đọc mã vạch phạm vi bán kính đến 25m

Today, there is an increasing trend towards the utilisation of 2D barcode scanners. This is not surprising as they have the ability to handle a wide array of data, such as price, quantity and business addresses; they can even embed images, making them the ideal tool for a magnitude of applications.

However, there is still a much needed place in the industry, more specifically the automatic data capture industry, for linear barcode scanners such as the QM2131. Long barcodes with very small text are commonly used in a variety of applications including the barcoding of utility bills, document processing and packaging. This poses a challenge for full area imagers due to their more narrow field of view and shallower depth of field. A different solution is therefore required.

Enhanced Performance

The QuickScan QM2131 features an extra wide field of view imager and an enhanced wide angle scan line which when combined, make the traditionally tedious and time consuming process of scanning barcodes with small text far easier. Additionally, the QM2131, with its ultra-sharp and highly visible scan line, as well as improved field of view, allows for an enhanced level of user-friendliness allowing your barcodes to be easily read from an intuitive distance.

Cordless Features

With Datalogic’s industry leading STAR 2.0 Cordless System designed specifically for narrow band 433 MHz radio communications, the QM2131 linear imager is fully equipped to handle secure radio communications with zero risk of interference from nearby Wi-Fi signals. The QM2131 is also highly resilient to many common obstacles that plague barcode scanners such as concrete, wood or metal shelving. This makes it the ideal tool for any production environment.

The QM2131 comes with an innovative, long lasting and easily replaceable 1400mAh battery which makes it super simple to change out the most critical component of this mobile solution at a moment’s notice. What’s more, a microUSB port is included at the foot of the device, allowing for mobile charging on the go via a portable battery pack, or data transfer to or from a laptop or PC.

CORDLESS COMMUNICATIONS

DATALOGIC STAR2.0 CORDLESS SYSTEM™ Effective Radiated Power: 433.92 MHz; Point-to-Point Configuration
RADIO FREQUENCY 433 MHz
RADIO RANGE (OPEN AIR) 25.0 m / 82.0 ft

DECODING CAPABILITY

1D / LINEAR CODES Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.
STACKED CODES EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; UPC A/E Composites

ELECTRICAL

BATTERY Battery Type: Lithium-Ion 1400 mAh;
Charge Time: External Power: 4 hrs @ 12 VDC;
Reads per Charge: 30,000 +
INPUT VOLTAGE 4.75 - 14 VDC

ENVIRONMENTAL

AMBIENT LIGHT 0 - 120,000 lux
DROP RESISTANCE Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface.
ESD PROTECTION (AIR DISCHARGE) 16 kV
HUMIDITY (NON-CONDENSING) 90%
PARTICULATE AND WATER SEALING IP42
TEMPERATURE Operating: 0 to 50 °C / 32 to 122 °F;  Storage/Transport: -40 to 70 °C / -40 to 158 °F

INTERFACES

INTERFACES Keyboard Wedge / OEM (IBM) USB / RS-232 /USB

PHYSICAL CHARACTERISTICS

COLORS AVAILABLE Black, White
DIMENSIONS 16.3 x 9.1 x 4.1 cm / 6.4 x 3.6 x 1.6 in
WEIGHT Reader: 190 g / 6.7 oz
Base/Charger: 215 g / 7.6 oz

READING PERFORMANCE

FIELD OF VIEW 56° +/- 2°
LIGHT SOURCE Red LED 610 - 650 nm
PRINT CONTRAST RATIO (MINIMUM) 25%
READ RATE 400 reads / sec.
READING ANGLE Pitch: +/- 65°; Roll (Tilt): +/- 45°; Skew (Yaw): +/- 70°
READING INDICATORS Beeper (Adjustable Tone and Volume); Datalogic ‘Green Spot’ Good Read Feedback; Good Read LED
RESOLUTION (MAXIMUM) 0.102 mm / 4 mils (Linear Codes)

READING RANGES


TYPICAL DEPTH OF FIELD Minimum distance determined by symbol length and scan angle.
Printing resolution, contrast, and ambient light dependent.

4 mils: 3.0 to 11.0 cm / 1.2 to 4.3 in
5 mils: 2.0 to 15.0 cm / 0.8 to 5.9 in
7.5 mils: 2.0 to 25.0 cm / 0.8 to 9.8 in
10 mils: 2.0 to 36.0 cm / 0.8 to 14.2 in
13 mils: 1.0 to 45.0 cm / 0.4 to 17.7 in
20 mils: 4.0 to 70.0 cm / 1.5 to 27.5 in

SAFETY & REGULATORY

AGENCY APPROVALS The product meets necessary safety and regulatory approvals for its intended use. The Quick Reference Guide for this product can be referred to for a complete list of certifications.
ENVIRONMENTAL COMPLIANCE Complies to China RoHS; Complies to EU RoHS

UTILITIES

DATALOGIC ALADDIN™ Datalogic Aladdin configuration program is available for download at no charge.
OPOS / JAVAPOS JavaPOS Utilities are available for download at no charge.
OPOS Utilities are available for download at no charge.
REMOTE HOST DOWNLOAD Lowers service costs and improves operations.
