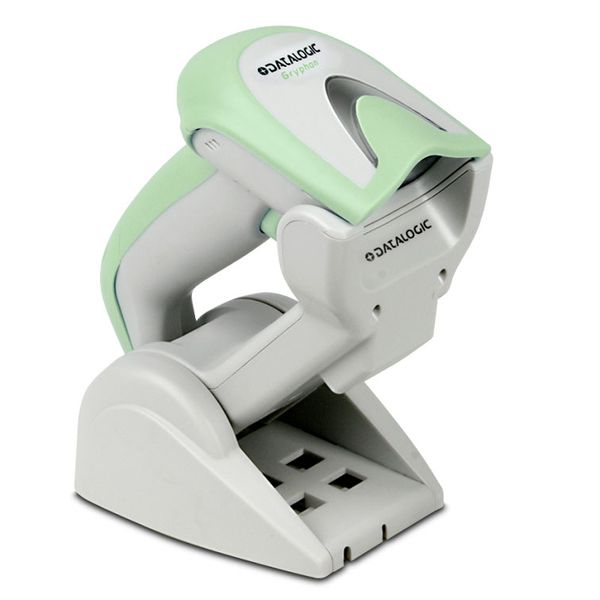

Máy quét mã vạch Datalogic Gryphon I GM4400-HC 2D

Liên hệ: +84 907 669 388

Tình trạng: Có sẳn

Máy đọc mã vạch 2D không dây dùng cho bệnh viện lĩnh vực chăm sóc sức khỏe, y tế, quầy thuốc. GM4400 cung cấp tính năng kết nối vô tuyến đáng tin cậy và hiệu suất cao nhất

The key mission of scanners in the healthcare industry is to improve the quality of patient care while reducing medication errors. Additionally, healthcare environments have requirements that scanners need to be regularly cleaned and disinfected. Datalogic’s Gryphon Healthcare (HC) product series is specifically developed for healthcare applications with Disinfectant-Ready enclosures treated with anti-microbial additives which are designed to withstand daily cleaning with harsh disinfectant solutions.

Featuring Datalogic’s STAR Cordless System™, the Gryphon™ GM4400 imager provides bi-directional communication, which allows data to be reliably transmitted from the reader to the host system and vice versa. The Gryphon GM4400 Batch Mode capability allows thousands of codes to be stored in its memory. These features, combined with a 60,000 scans per charge Lithium-Ion battery, allow uninterrupted scanning with unlimited mobility.

Perfect for both handheld and presentation reading, the GM4400-HC 2D imager features Datalogic’s Motionix™ motion-sensing technology which detects the natural actions of the operator to automatically switch the scanner into handheld or hands-free scanning modes. Datalogic’s unique two-position cradle allows for presentation style reading while the ‘Scan-While-Charging’ feature adds extended productivity.

The deep-red illumination of the Gryphon 4400 imagers eliminate the irritating ‘flicker effect’ allowing for comfortable all-day usage. The highly visible 4-Dot aimer provides a clear indication of the reading area, making targeting codes quick and easy. The Gryphon 4400-HC 2D readers can decode virtually any 1D and 2D bar code symbology and can read codes from LCD monitors, cell phones, smartphones and other mobile devices.

Features

  • Datalogic STAR Cordless System™ with up to 30 m / 98 ft range
  • Radio frequencies available in 433 MHz or 910 MHz
  • Point-to-point and multi-point transmission
  • Omnidirectional reading
  • Datalogic’s patented ‘Green Spot’ for good-read feedback plus the 4-dot Aimer

Cordless Communications

  • Datalogic STAR Cordless System™
    • Effective Radiated Power
      • 433.92 MHz
        < 10 mW
      • 910 MHz
        < 1 mW
    • Multi-Point Configuration
      • Max. Readers per Radio Receiver
        • 16
    • Point-to-Point Configuration
    • Radio Frequency
      • 433.92 MHz
      • 910 MHz
    • Two Way Communications

Decoding Capability

  • 1D / Linear Codes
    • Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes
  • 2D Codes
    • Aztec Code
    • China Han Xin Code
    • Data Matrix
    • MaxiCode
    • QR Code
  • Postal Codes
    • Australian Post
    • China Post
    • IMB
    • Japanese Post
    • KIX Post
    • Korea Post
    • Planet Code
    • Postnet
    • Royal Mail Code (RM4SCC)
  • Stacked Codes
    • EAN/JAN Composites
    • GS1 DataBar Composites
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • MacroPDF
    • MicroPDF417
    • PDF417
    • UPC A/E Composites

Electrical

  • Battery
    • Battery Type
      • Lithium-Ion
        2100 mAh
    • Charge Time
      • External Power
        • 4 Hours @ 12 VDC
    • Reads per Charge
      • 60,000
  • Cradle Indicator LEDs
    • Battery Charging (Red)
    • Charge Completed (Green)
    • Power/Data (Yellow)
  • Current
    • Charging (Typical)
      • < 8 W
    • Standby/Idle (Typical)
      • < 2.5 mA @ 5 VDC
  • Input Voltage
    • 4.75 - 14 VDC +/- 5%

Environmental

  • Ambient Light
    • 0 - 100,000 lux
  • Drop Resistance
    • Withstands repeated drops from 1.5 m / 4.9 ft onto a concrete surface
  • ESD Protection (Air Discharge)
    • 16 kV
  • Humidity (Non-Condensing)
    • 0 - 90%
  • Particulate and Water Sealing
    • IP52
  • Temperature
    • Operating
      • 0 to 50 ºC / 32 to 122 ºF
    • Storage/Transport
      • -20 to 70 ºC / -4 to 158 ºF

Interfaces

  • RS-232 / USB / Keyboard Wedge / Wand Multi-Interface

Physical Characteristics

  • Colors Available
    • Light Green/Light Grey (Rubber/Plastic)
  • Dimensions
    • Cradle
      18.6 x 9.9 x 5.6 cm / 7.2 x 3.9 x 2.2 in
    • Reader
      18.1 x 7.1 x 10.0 cm / 7.1 x 2.8 x 3.9 in
  • Enclosure
    • Disinfectant-Ready Enclosure Treated with Anti-Microbial Additives
  • Weight
    • Cradle
      246.0 g / 8.7 oz
    • Reader
      245.0 g / 8.6 oz

Reading Performance

  • Imager Sensor
    • Wide VGA
      752 x 480 pixels
  • Light Source
    • Aiming
      • 650 nm VLD
  • Motion Tolerance
    • 25 IPS
  • Print Contrast Ratio (Minimum)
    • 25%
  • Reading Angle
    • Pitch
      • +/- 40º
    • Roll (Tilt)
      • 360º
    • Skew (Yaw)
      • +/- 40º
  • Reading Indicators
    • Beeper (Adjustable Tone and Volume)
    • Datalogic 'Green Spot' Good Read Feedback
    • Good Read LED
  • Resolution (Maximum)
    • 1D Linear
      0.102 mm / 4 mils
    • Data Matrix
      0.178 mm / 7 mils
    • PDF417
      0.127 mm / 5 mils

Reading Ranges - Typical Depth of Field

  • Minimum distance determined by symbol length and scan angle.
  • Printing resolution, contrast, and ambient light dependent.
  • Code 39: 5 mils
    • 4.0 to 19.0 cm / 1.6 to 7.5 in
  • Code 39: 10 mils
    • 1.0 to 30.0 cm / 0.4 to 11.8 in
  • Data Matrix: 10 mils
    • 2.0 to 16.0 cm / 0.8 to 6.3 in
  • Data Matrix: 15 mils
    • 0 to 23.6 cm / 0 to 9.3 in
  • EAN-13: 13 mils
    • 1.5 to 40.0 cm / 0.6 to 15.7 in
  • PDF417: 10 mils
    • 0.5 to 22.0 cm / 0.2 to 8.6 in
  • QR Code: 10 mils
    • 3.0 to 12.5 cm / 1.2 to 4.9 in

Safety & Regulatory

  • Agency Approvals
    • The product meets necessary safety and regulatory approvals for its intended use.
    • The Quick Reference Guide for this product can be referred to for a complete list of certifications.
  • Environmental Compliance
    • Complies to China RoHS
    • Complies to EU RoHS
  • Laser Classification
    • Caution Laser Radiation - Do not stare into beam
    • IEC 60825 Class 2

Utilities

  • Datalogic Aladdin™
    • Datalogic Aladdin configuration program is available for download at no charge
  • OPOS / JavaPOS
    • JavaPOS Utilities are available for download at no charge
    • OPOS Utilities are available for download at no charge

Máy đọc mã vạch 2D không dây dùng cho bệnh viện lĩnh vực chăm sóc sức khỏe, y tế, quầy thuốc. GM4400 cung cấp tính năng kết nối vô tuyến đáng tin cậy và hiệu suất cao nhất
