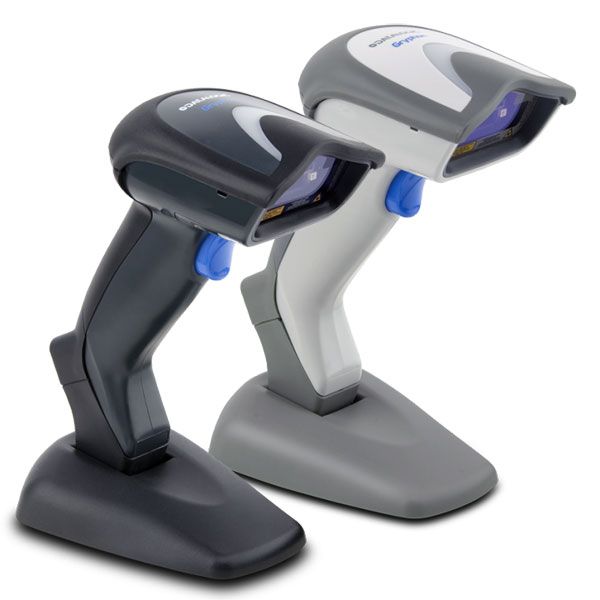

Máy quét mã vạch Datalogic Gryphon I GD4400-B 2D

Liên hệ: +84 907 669 388

Tình trạng: Có sẳn

Máy quét mã vạch cầm tay hoặc để bàn (lai) với các tính năng độc đáo cho việc sử dụng chế độ rảnh tay và đảm bảo đọc mã vạch một cách2D tốt nhất

DATALOGIC MOTIONIX™ MOTIONSENSING TECHNOLOGY

Perfect for both handheld  and presentation reading, the Gryphon GD4400 imager features Datalogic’s Motionix™ motionsensing technology which detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode. This technology works with or without the use of a stand, offering more operational choices. Both the aimer and sensor can be programmed to the user’s desired preferences.


DATALOGIC 4-DOT AIMER TARGETING

User comfort is maximized with the Gryphon GD4400 imager’s steady, deep red illumination light. Easier on the eyes than competitive products with flicker illumination, the highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads. The aimer’s center cross provides a locator for targeted scanning in a multiple bar code environment.


AREA IMAGER

The Gryphon GD4400 imager provides snappy reading performance on all common 1D and 2D codes as well as postal, stacked and composite codes like PDF417. High Density (HD) models are also available for reading smaller, condensed codes. For mobile marketing or ticketing applications, this imager also offers excellent performance when reading bar codes from mobile devices.

The Gryphon GD4400 imager provides snappy reading performance on all common 1D and 2D codes as well as postal, stacked and composite codes like PDF417. High Density (HD) models are also available for reading smaller, condensed codes. For mobile marketing or ticketing applications, this imager also offers excellent performance when reading bar codes from mobile devices.

The Gryphon GD4400 2D omnidirectional reader eliminates the need for separate equipment with signature capture and document scanning capabilities. Its enhanced optics offer improved motion tolerance and high speed imaging to read fast moving codes.

INTERFACES

As a corded device, the Gryphon GD4400 imager is available in two different interface models: a multi-standard interface for connection to the host via USB (COM and Wedge Emulation), RS-232 or Wedge Emulation or an IBM 46XX interface model, including USB and RS-232 interfaces.


SUITABLE APPLICATIONS

  • Manufacturing
  • Entertainment

Technology Linear Image
Ability read Autodiscriminates all standard 1D codes including GS1 Databar™ linear codes ; 2D Codes: Aztec Code, China Han Xin Code, Data Matrix, MaxiCode, QR Code ; Postal Codes: Australian Post, China Post, IMB, Japanese Post, KIX Post, Korea Post, Planet Code, Postnet, Royal Mail Code (RM4SCC) ; Stacked Codes: EAN/JAN Composites, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MacroPDF, MicroPDF417, PDF417, UPC A/E Composites
Interface Keyboard Wedge, RS 232, USB
Durability IP52. Withstands repeated drops from 1.5 m
Print contrast 25%
Max resolution 0.1 mm ( = 4 mils)
Ambient Light 0 –100.000 lux
Typical Depth of Field Printing resolution, contrast and ambient light dependent:
Code 39: 5 mils 4.0 to 19.0 cm / 1.6 to 7.5 in
Code 39: 10 mils 1.0 to 30.0 cm / 0.4 to 11.8 in
Data Matrix: 10 mils 2.0 to 16.0 cm / 0.8 to 6.3 in
Data Matrix: 15 mils 0 to 23.6 cm / 0 to 9.3 in
EAN-13: 13 mils 1.5 to 40.0 cm / 0.6 to 15.7 in
PDF417: 10 mils 0.5 to 22.0 cm / 0.2 to 8.6 in
QR Code: 10 mils 3.0 to 12.5 cm / 1.2 to 4.9 in
Reading Indicators Beeper (Adjustable Tone); Datalogic ‘Green Spot’ Good Read Feedback ; Good Read LED
Image Capture Wide VGA: 752 x 480 pixels; Graphic Formats: BMP, JPEG, TIFF; Greyscale: 256, 16, 2
Applications The pertiency is user for supermakets, bookstores and shops

Máy quét mã vạch cầm tay hoặc để bàn (lai) với các tính năng độc đáo cho việc sử dụng chế độ rảnh tay và đảm bảo đọc mã vạch một cách2D tốt nhất
